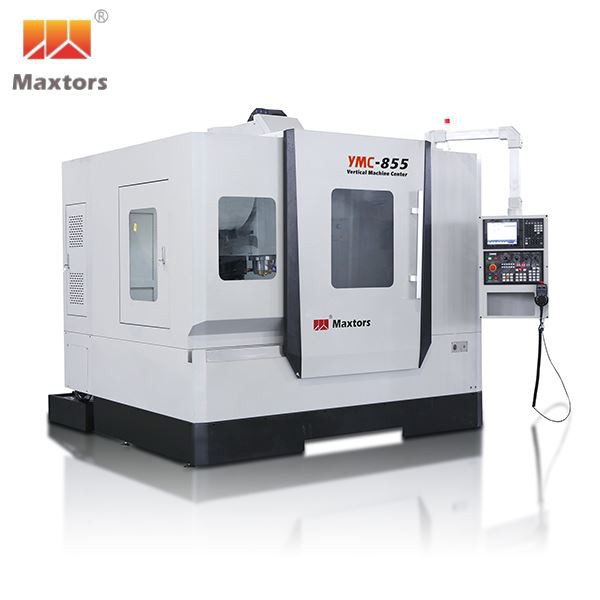

Vertikal CNC frezalash mashinasi

VMC650, VMC850, VMC855, VMC1160, VMC1270, VMC1470
3 eksa Chiziqli yo'riqnomalar turi
FANUC, Mitsubishi, Siemens, FOGOR, Heidenhain, TAYVAN LNC, SYNTEC cnc kontrolleri bilan bo'lishi mumkin
3 eksa, 4 eksa, 5 eksa ixtiyoriy

So'rov yuborish

VMC650, VMC850, VMC855, VMC1160, VMC1270, VMC1470

3 eksa Chiziqli yo'riqnomalar turi

FANUC, Mitsubishi, Siemens, FOGOR, Heidenhain, TAYVAN LNC, SYNTEC cnc kontrolleri bilan bo'lishi mumkin

3 eksa, 4 eksa, 5 eksa ixtiyoriy

LINEAR GUIDE RAILS SERIES VMC Mahsulot spetsifikatsiyasi

Elementlar	Birlik	YMC-650V(BT30)	YMC% 7b{0}}V(BT40)	YMC% 7b{0}}V	YMC% 7b{0}}V	YMC% 7b{0}}V	YMC% 7b{0}}V
Jadval
Jadval hajmi	mm	620×420	620×420	1000×500	1200×600	1400×700	1500×710
Maks.Yuklanmoqda	KG	600	600	600	800	900	1000
T-uyasi	mm	3-18×135	3-18×135	3-18×150	5-18×120	5-18×120	5-18×125
Sayohat
X/Y/Z sayohati	mm	650/400/400	650/400/400	800/500/500	1100/600/600	1200/700/650	1400/700/700
Shpindel burni stolga	mm	100~500	100~500	130~630	150~750	110~760	100~800
Shpindel
Shpindel konusi		7/24 konusning №30	7/24 konusning №40	7/24 konusning №40	7/24 konusning №40	7/24 konusning №40	7/24 konusning №40
Shpindel tezligi	.rpm	10000	8000	8000	8000	8000	8000
Shpindel dvigatelining kuchi	KVt	3.7/5.5	5.5/7.5	5.5/7.5	7.5/11	7.5/11	7.5/11
Oziqlantirish
Tez uzatish tezligi (X/Y/Z)	m/min	30/30/30	30/30/30	30/30/30	30/30/30	20/20/15	20/20/15
Kesish tezligi (X/Y/Z)	m/min	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10
ATC (opt.)
ATC turi		Qo'lsiz / qo'l	Qo'lsiz / qo'l	Qo'lsiz / qo'l	Qo'lsiz / qo'l	Qo'lsiz / qo'l	Qo'lsiz / qo'l
Asboblar soni	dona	12/16/20/24	12/16/20/24	12/16/20/24	12/16/20/24	12/16/20/24	12/16/20/24
Asboblar hajmi (to'liq asboblar)	mm	Φ50/260	Φ80/300	Φ80/300	Φ80/300	Φ80/300	Φ80/300
Asbobning maksimal og'irligi	KG	3	8	8	8	8	8
Aniqlik
Joylashtirish aniqligi	mm	±0.008/300	±0.008/300	±0.008/300	±0.008/300	±0.008/300	±0.008/300
Qayta joylashtirishning aniqligi	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Boshqalar
Iz	mm	2400×2000	2400×2000	2700×2200	3100×2300	3600×3000	3900×3000
Mashina balandligi	mm	2500	2500	2700	2900	3000	3000
G.W.	KG	4000	4000	5000	7000	8000	10000
